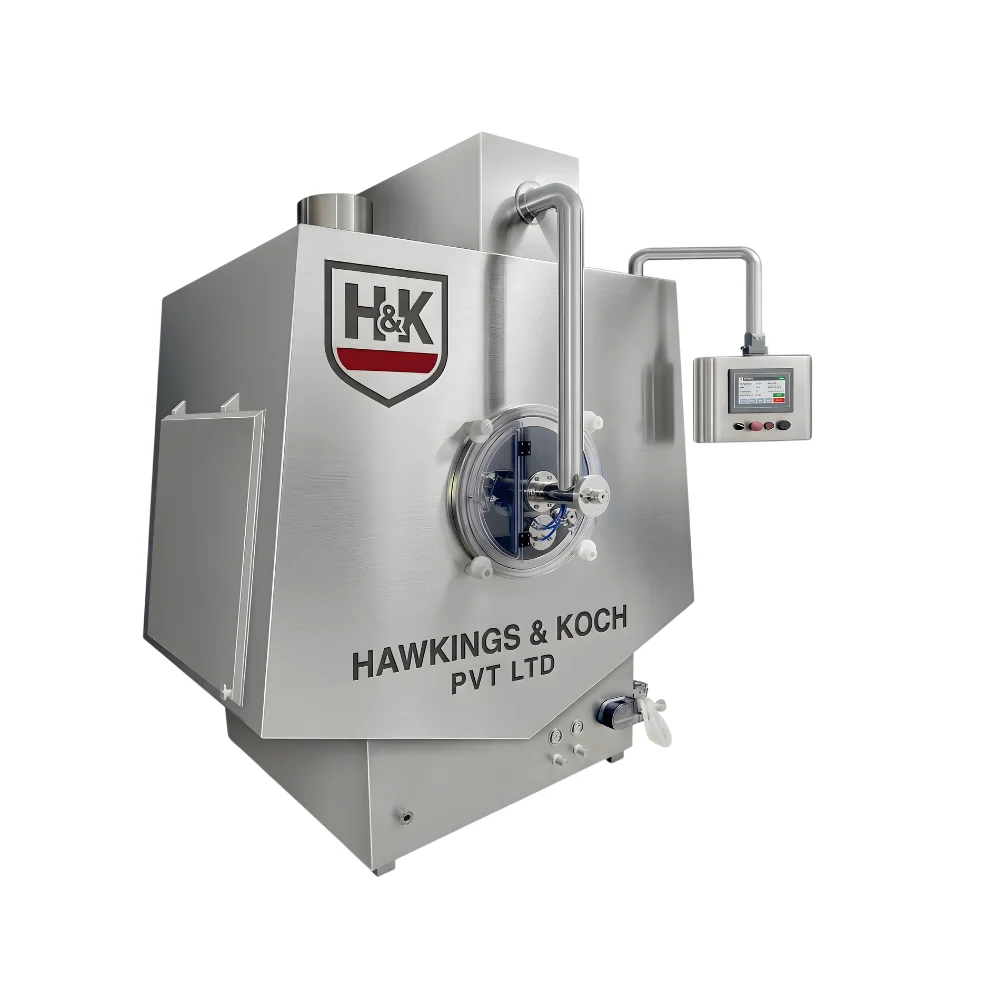

Autocoater
Salient Features:
- Film & sugar coating in one machine (Optional).
- Punched hole pan design: Faster drying. Short operation time
- 09. Auto coater model 66 & above can be provided with auto discharge system: Easy & clean.
- Explosion proof system for organic solvent available.
- Auto damper design for total isolation from outdoor reverse airflow: Easy control & regulate.
- 4. Auto control by PLC: Easy operation.
- Data recordable for the whole process: Easy for operator training.
- Special baffle design for even tablet mixing.
Description
AUTOCOATER Technical Specifications
| Model | BC15 | BC24 | BC36 | BC48 | BC52 | BC60 | BC66 |
|---|---|---|---|---|---|---|---|
| Capacity (kgs) | 3 | 10 | 75 | 150 | 225 | 350 | 500 |
| Pan diameter (mm) | 457 | 610 | 915 | 1220 | 1320 | 1575 | 1650 |
| Pan mouth diameter (m) | 200 | 300 | 380 | 460 | 460 | 500 | 500 |
| Pan speed RPM (variable) | 5-25 | 2-13 | 2-13 | 2-13 | 2-13 | 2-23 | 2-13 |
| Drive Motor HP (Flame Proof) | 1 | 1 | 2 | 3 | 5 | 7.5 | 7.5 |
| Length (mm) | 1020 | 1100 | 1350 | 1720 | 1900 | 1920 | 2370 |
| Width (mm) | 1000 | 1300 | 1450 | 1650 | 1950 | 2150 | 2300 |
| Height (mm) | 1550 | 1700 | 1900 | 2100 | 2335 | 2400 | 2500 |
| Process air volume (cfm) | 100 | 350 | 1250 | 2550 | 3600 | 5500 | 7500 |
| Hot air temperature (°C at 3 to 5 kg/cm² Steam Pressure) | 10°-90° C | 10°-90° C | 10°-90° C | 10°-90° C | 10°-90° C | 10°-90° C | 10°-90° C |
| Electrical power consumption (KW) | 6.5 | 7 | 8 | 12 | 15 | 27 | 32 |
| Electrical heating load (KW) | 3 | 9 | 36 | 48 | – | – | – |
Reviews (0)
Shipping & Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
Communiting Mill
Salient Features:
- GMP model with SS 316 contact parts.
- Direction of beaters can be changed by reversible switch.
- All contact parts can be easily and quickly dismantled and cleaned.
- Water jacketed & Plain models available.
- Machine is designed for continuous operation.
- Perforated screen of different sizes available.
- Castor wheels provided for mobility.
- Flameproof electrical components can be provided at extra cost.
Conta Blender
Salient Features:
- Design is cGMP - Current Good Manufacturing Practices compliance.
- All contact parts AISI 316 & non-contact parts AISI 304.
- Capacity available from 30 Kg to 600 Kg.
- Suitable for inline process with Milling and Sifter.
- Suitable for loading material into High Shear Mixer, Blender, Tablet Press, Blister Pack Machines, etc.
- 360-degree swiveling movement of lifting arm.
- Loading height designed as per end user requirement and slab height.
- Structure cladding made of S.S. 304 with matt finished.
- Hydraulic power pack system for lifting.
- If the power goes off, the loader remains where it was.
- Limit switches provided to stop hydraulic drive when stroke is completed.
Double Cone Blender
Salient Features:
- Compact design with all contact parts in SS 316.
- Safety guards with interlocking.
- Baffles provided for proper mixing.
- Easy loading and unloading.
- Flameproof motor and electricals available as an option.
- Vacuum-compatible powder loading system optional.
Fluid Bed Dryer
Salient Features:
- cGMP model with contact parts in SS 316 single-piece design.
- Uniformity in drying and fast drying time.
- Online sampling port in product container.
- Inlet AHU with HEPA filtration, dehumidification system, etc.
- Automatic shaking system with 3-stage telescopic cylinder.
- PLC-based control panel, 21 CFR compliant.
- Vacuum transfer system for product transfers available as an option.
- Rupture disk.
- Top sprayer system with solution vessel & peristaltic pump provided as optional.
Liquid Manufacturing Plant
Salient Features:
- cGMP model with contact parts in SS316.
- Fully automatic process untouched by human hands.
- Triple jacketed vessels suitable for heating and cooling.
- All fittings and valves are sanitary design.
- Options for top and bottom agitator assembly.
- 2 & 4 stage inline homogenizer provided.
- Sugar transfer system through vacuum.
- PLC based control panel, 21 CFR compliant.
- Electropolished pipeline.
- Ultrasonic level controller.
- Option for load cell.
- Option for automatic valves and utilities.
Oscillating Granulator
Salient Features:
- Available in Single Hopper & Double Hopper with single drive system.
- GMP Model with SS 316 contact parts.
- Diamond Shaped Horizontal Blades for proper granulation.
- Reduced fine powder formation.
- Perforated sieves available in various sizes.

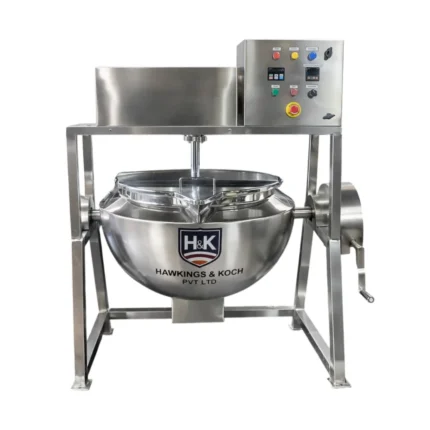

Paste Kettle
