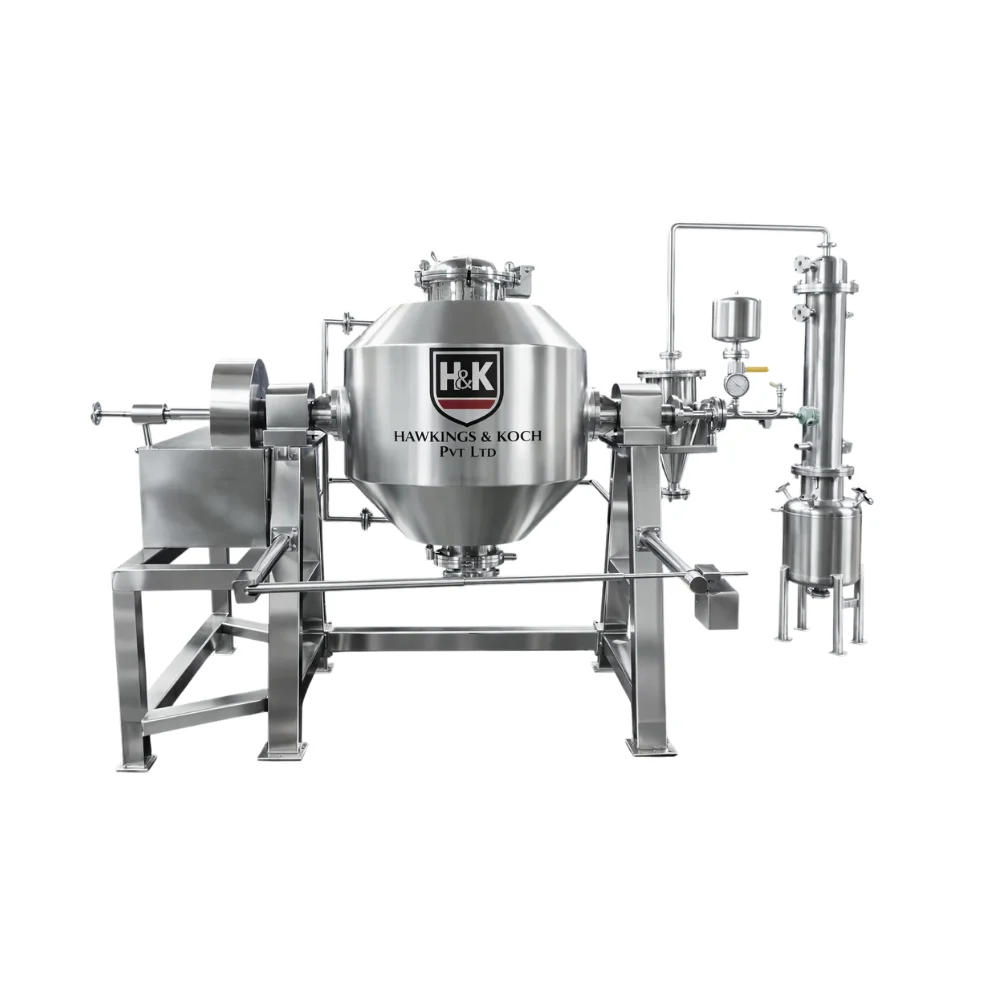

Rotocone Vaccum
Salient Features:
- GMP construction.
- Jacket fabrication to suit either steam, thermic fluid, or hot water media of heating.
- Full vacuum during operation.
- Cones are completely leak proof.
- Loading & unloading with ease.
- Uniform shuffling with more heat surface area.
- Condensers and receivers for solvent collection.
- Custom-built models also available for special applications.
Description
Technical Specification:
| MODEL | RCVD 100 | RCVD 200 | RCVD 300 | RCVD 500 |
| Total Volume (Itrs) | 100 | 200 | 300 | 500 |
| Working Volume (Itrs) | 50 | 120 | 150 | 250 |
| Capacity in kg | 30 | 60 | 85 | 150 |
| Gear Box | 3″ | 3″ | 3.5″ | 4″ |
| Condenser (m²) | 1 | 1.5 | 2 | 3 |
| Receiver (Itrs) | 50 | 100 | 150 | 200 |
| Cyclone Separator (Ltrs) | 25 | 30 | 40 | 50 |
| Main Drive Motor (HP) | 1.5 | 3 | 3 | 5 |
| Vacuum Pump (HP) | 3 | 3 | 5 | 7 |
| Overall Dimension (Approx.) | 1900 × 850 × 1700 | 2200 × 1000 × 1900 | 2200 × 1000 × 1900 | 2500 × 1200 × 2100 |
