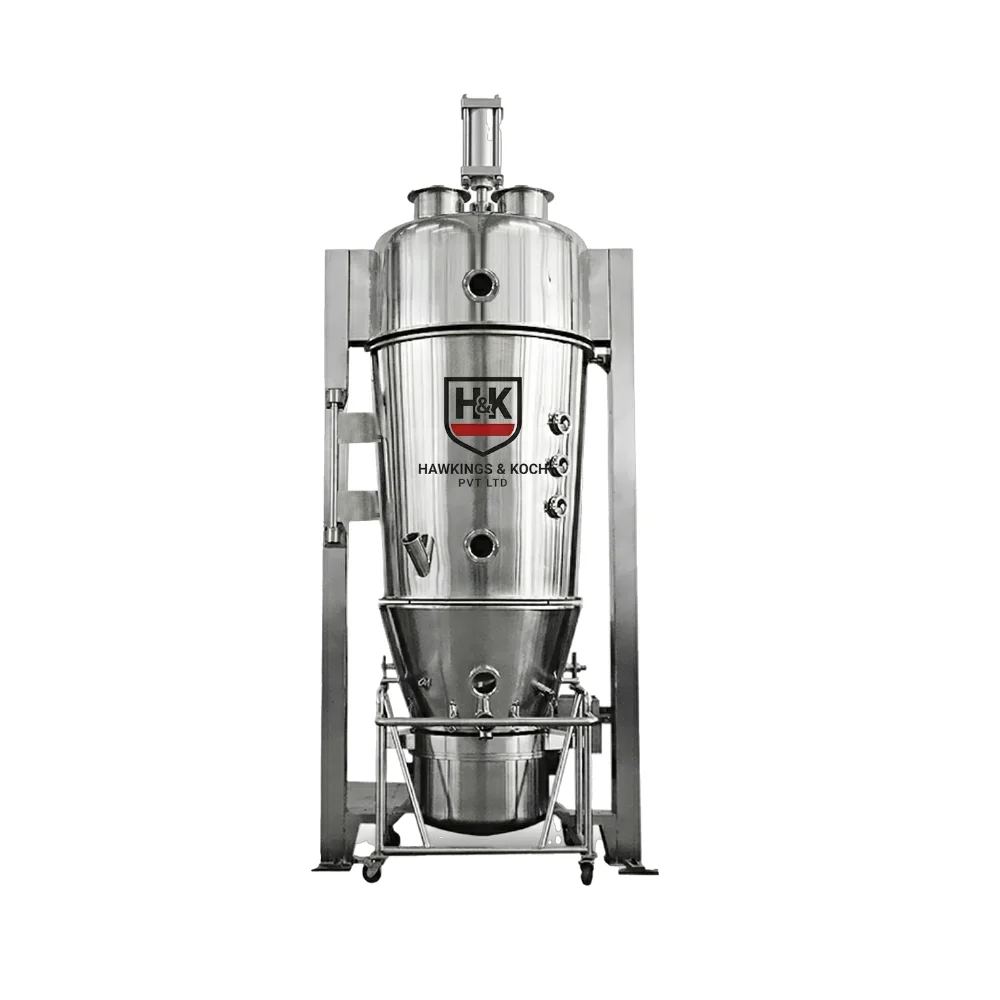

Fluid Bed Dryer
Salient Features:
- cGMP model with contact parts in SS 316 single-piece design.
- Uniformity in drying and fast drying time.
- Online sampling port in product container.
- Inlet AHU with HEPA filtration, dehumidification system, etc.
- Automatic shaking system with 3-stage telescopic cylinder.
- PLC-based control panel, 21 CFR compliant.
- Vacuum transfer system for product transfers available as an option.
- Rupture disk.
- Top sprayer system with solution vessel & peristaltic pump provided as optional.
Description
Technical Specifications
| Sizes | 5 kgs | 30 kgs | 60 kgs | 120 kgs | 200 kgs | 250 kgs | 500 kgs |
|---|---|---|---|---|---|---|---|
| Motor Hp | 3 Hp | 5 Hp | 15 Hp | 20 Hp | 25 Hp | 30 Hp | 60 Hp |
| Heater KW | 6 KW | 18 KW | 36 KW | 54 KW | 72 KW | 120 KW | — |
| Steam Consumption | 10 kg | 25 kg | 50 kg | 100 kg | 220 kg | 275 kg | 600 kgs |
Reviews (0)
Shipping & Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
Coating Pan
Salient Features:
- SS 316 pan and other contact parts.
- Baffles inside the pan for proper tumbling of the tablets.
- Hot air blower to ensure faster drying of the tablets Gearbox and motor fitted in SS enclosure behind the machine
- Angle of the pan can be changed to suit individual requirements.
- Flameproof motor & electricals available as option.
- Interchangeable pans on the same machine for smaller models.
- Spraying system with solution vessel, pneumatic stirrer, peristaltic pump, and spray nozzle with control panel.
Double Cone Blender
Salient Features:
- Compact design with all contact parts in SS 316.
- Safety guards with interlocking.
- Baffles provided for proper mixing.
- Easy loading and unloading.
- Flameproof motor and electricals available as an option.
- Vacuum-compatible powder loading system optional.
Multimill
Salient Features:
- GMP model with SS 316 contact parts.
- Direction of beaters can be changed by reversible switch.
- All contact parts can be easily and quickly dismantled and cleaned.
- Machine is designed for continuous operation.
- Cylindrical screen for higher output.
- Castor wheels provided for mobility.
- Flameproof electrical components can be provided at extra cost.
- Option for direct-driven motor with mechanical seal available.
Octagonal Blender
Salient Features:
- Suitable for dry mixing of products in granule form.
- Octagon shape gives tumbling action & baffles provide proper mixing of the material.
- Easy to clean with CIP Spray Ball.
- All contact parts are made out of SS 316.
- Safety guards with interlocking.
- Flame proof motor and electrical available as option.
- Vacuum compatible powder loading system PLC in control panel. (Optional)
Paste Kettle
Salient Features:
- Tilting type design available in manual / pneumatic type.
- Hemispherical bottom for greater heat area.
- cGMP model in SS 316 contact parts.
- Electrically or steam heated jackets.
- Agitator with variable speed drive provided Auto temp control
Tablet Press Lab
Salient Features
- Compact and space-saving design
- High precision compression system
- Adjustable tablet thickness and hardness
- Easy operation and maintenance
- Suitable for R&D and pilot batch production
- Robust and durable construction
- Low noise and smooth operation
Tray Dryer
Salient Features:
- Single piece construction eliminates accumulation of dust on the dryer.
- Full welded internals with curved corners.
- Designed for uniform circulation of hot air in the drying chamber. Electrical/Steam/Thermic fluid/LPG/HSD burner heating available.
- Inlet is provided with 10 microns filter.
- Heating coils and fan motor have electrical interlocking.
- Digital temperature controller and digital timer are standard scope of supply.
Vaccum Tray Dryer
Salient Features:
- Operates under vacuum for low-temperature drying
- Uniform heat distribution for consistent drying results
- Stainless steel construction (SS 304 / SS 316)
- Leak-proof chamber with high-quality gasket sealing
- Digital temperature and vacuum control system
- Energy-efficient operation with reduced drying time
- Easy loading and unloading with multiple trays
