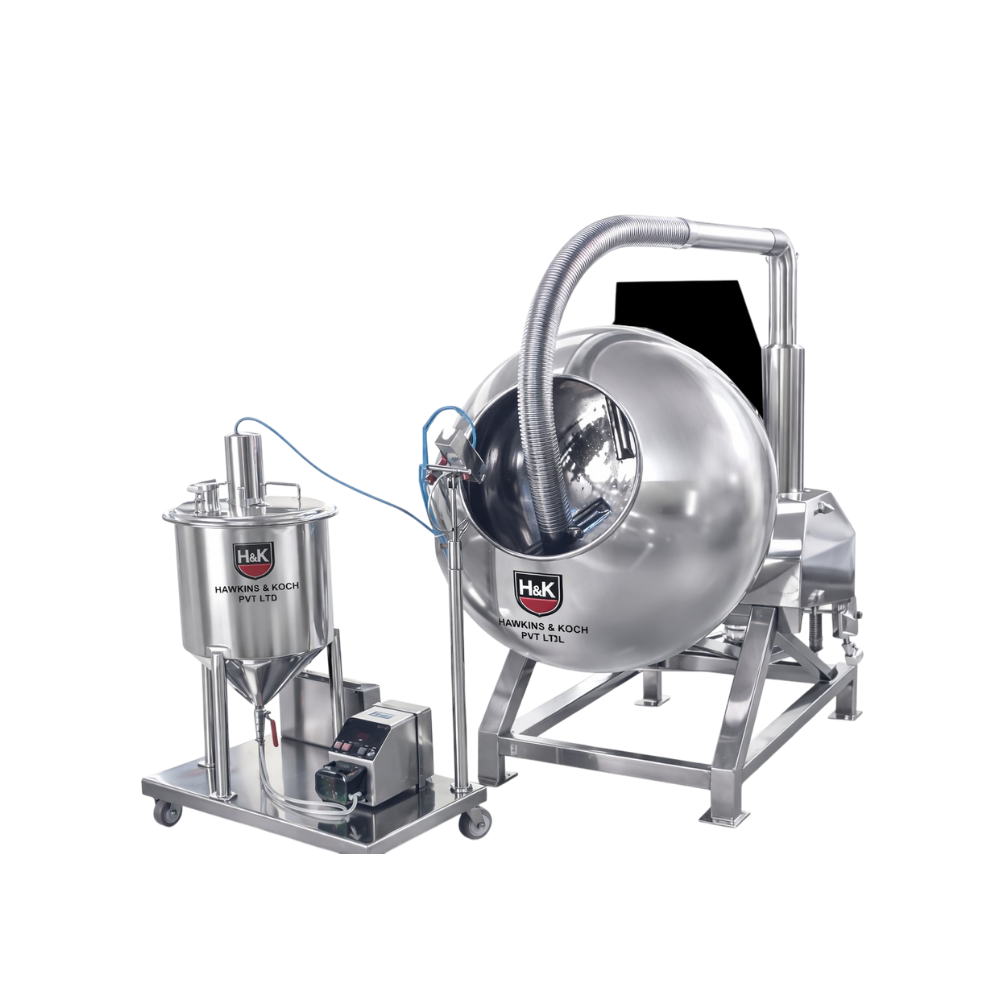

Coating Pan
Salient Features:
- SS 316 pan and other contact parts.
- Baffles inside the pan for proper tumbling of the tablets.
- Hot air blower to ensure faster drying of the tablets Gearbox and motor fitted in SS enclosure behind the machine
- Angle of the pan can be changed to suit individual requirements.
- Flameproof motor & electricals available as option.
- Interchangeable pans on the same machine for smaller models.
- Spraying system with solution vessel, pneumatic stirrer, peristaltic pump, and spray nozzle with control panel.
Description
Technical Specifications
| Models | 12″ | 24″ | 36″ | 48″ | 60″ | 72″ |
|---|---|---|---|---|---|---|
| Motor | 0.25 Hp | 1 Hp | 2 Hp | 3 Hp | 5 Hp | 7.5 Hp |
| Heater | 0.5 kw | 1.5 kw | 3 kw | 6 kw | 9 kw | 12 kw |
| Rpm | 2-25 | 5-20 | 5-20 | 5-20 | 5-12 | 5-12 |
| Solution Vessel | 5 ltrs | 20 ltrs | 50 ltrs | 100 ltrs | 200 ltrs | 250 ltrs |
